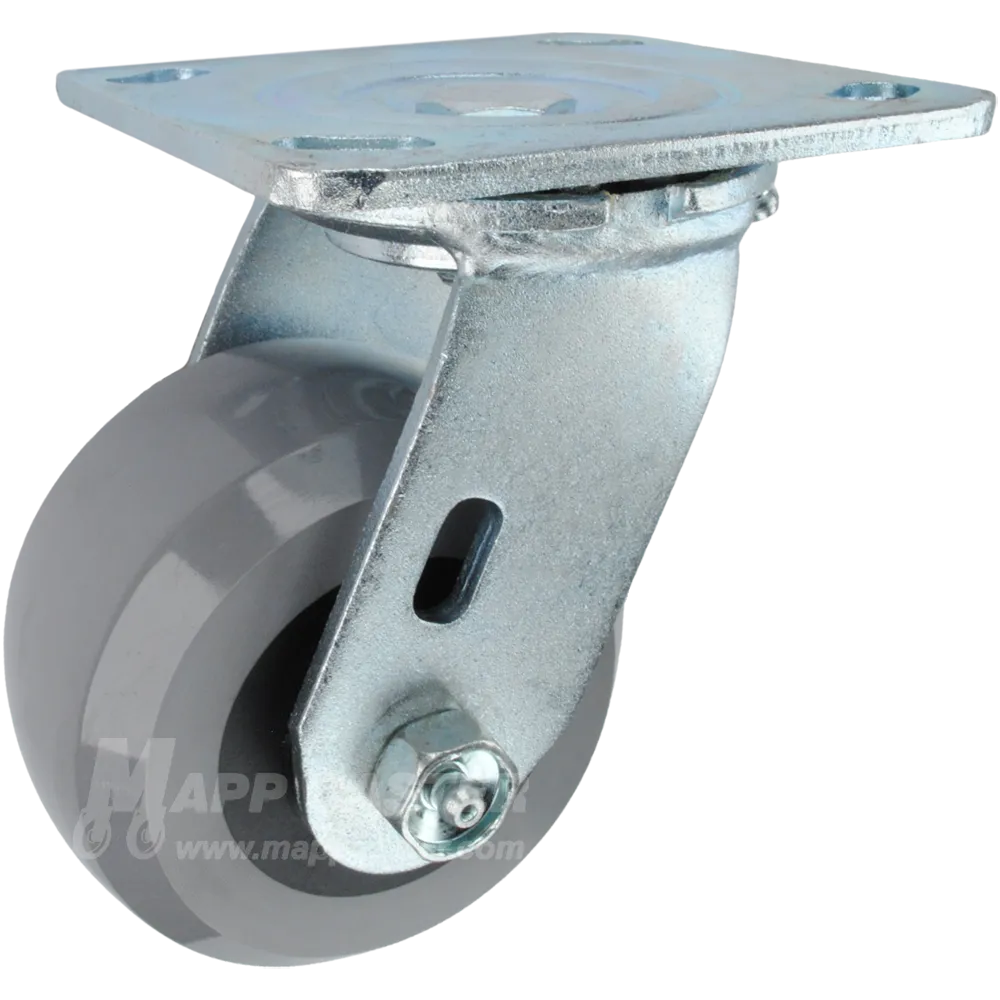

4" x 2" Solid Polyurethane Elastomer Wheel Swivel Caster - Part #: 146HUBB420S
Solid cast polyurethane elastomer wheels are similar to solid poly wheels but offer the higher capacities. These wheels are 100% washable, steam cleanable & chemical resistant. These wheels have excellent impact strength, abrasion resistance & compression resistance. They are easy to start rolling and offer a smooth ride. The polyurethane elastomer tread is mechanically locked to a glass filled nylon core which greatly decreases the chance of tread de-bonding failures. These wheels are often used in places poly on metal core wheels cannot be used or if more capacity & durability is needed compared to the other polyurethane wheels.
Specifications:
| Load Capacity (lbs.): 1,000 | Link to Matching Rigid Caster: |
| Wheel Diameter: 4" | Caster Rig Material Type: Cold Rolled Steel |
| Tread Width: 2" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Soild Cast Polyurethane Elastomer | Swivel or Rigid Caster: Swivel |
|
Wheel Bearing Type: Ball Bearing |
Swivel Radius: 3-3/16" |

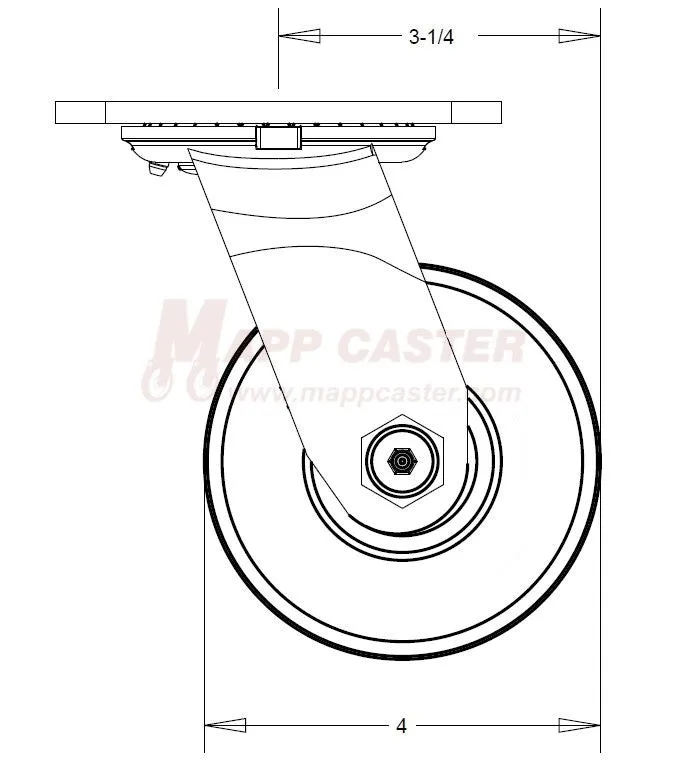

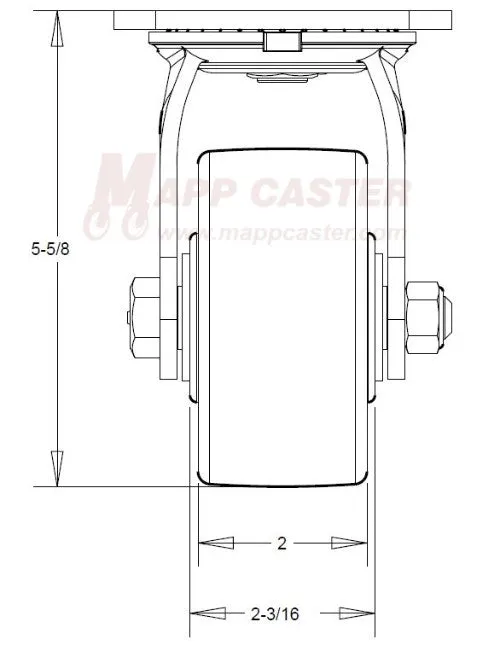

| Overall Height: 5-5/8" | Swivel Construction: Double Ball Raceway - 5/8" Kingpin |

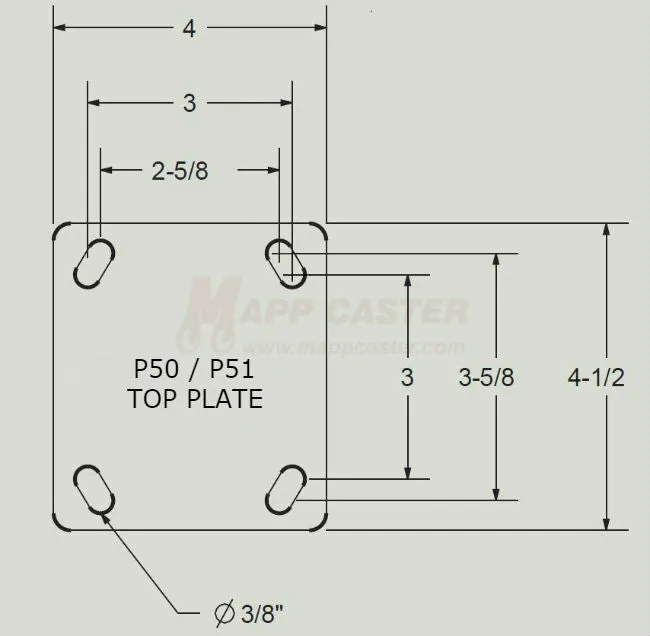

| Temp Range: -40°F to 180°F | Mounting Plate: 4" x 4-1/2" |
| Wheel Durometer: Shore D 65 ( /-5) | Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Wheel Color: Grey | Mounting Bolt Size: 3/8" or Smaller |
| Link to Replacement Wheel: | Weight: 4.15 lbs. |
